Table View

Table View organizes data into rows (of items) and columns (of item attributes). Tables make structured data easy to scan, compare, sort, and analyze. Tables can be embedded into other design patterns. Tables are familiar to users and often the correct choice for structured data, but be careful not to overuse tables. Here are some examples of when not to use a table:

The table pattern should NOT be used if:

  • Users need to find patterns within a data set. Consider a line chart or a bar chart.
  • Users need to browse the data set without knowing exactly what to look for. Consider using a List View.

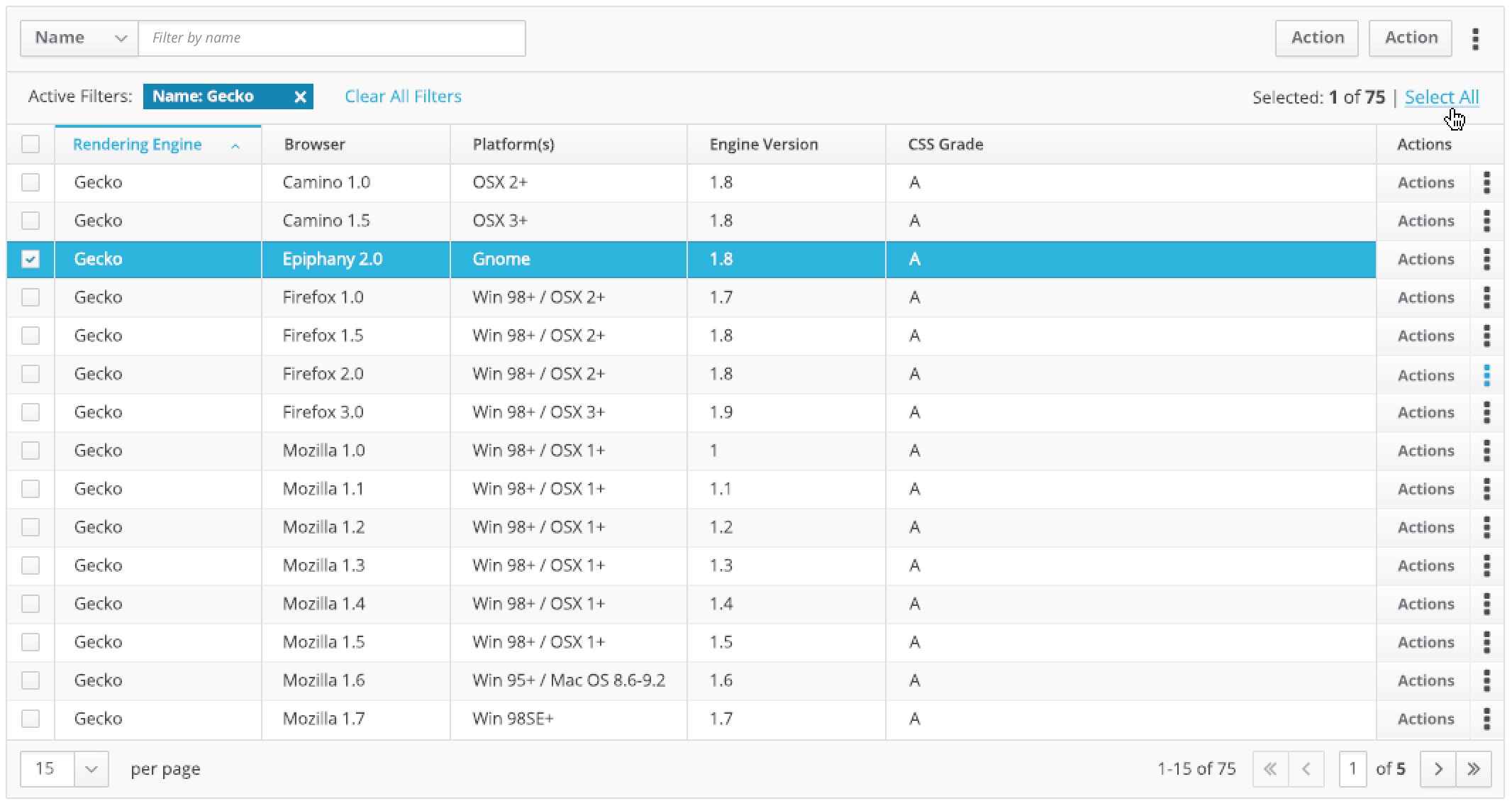

Default Table

Table View

Table States

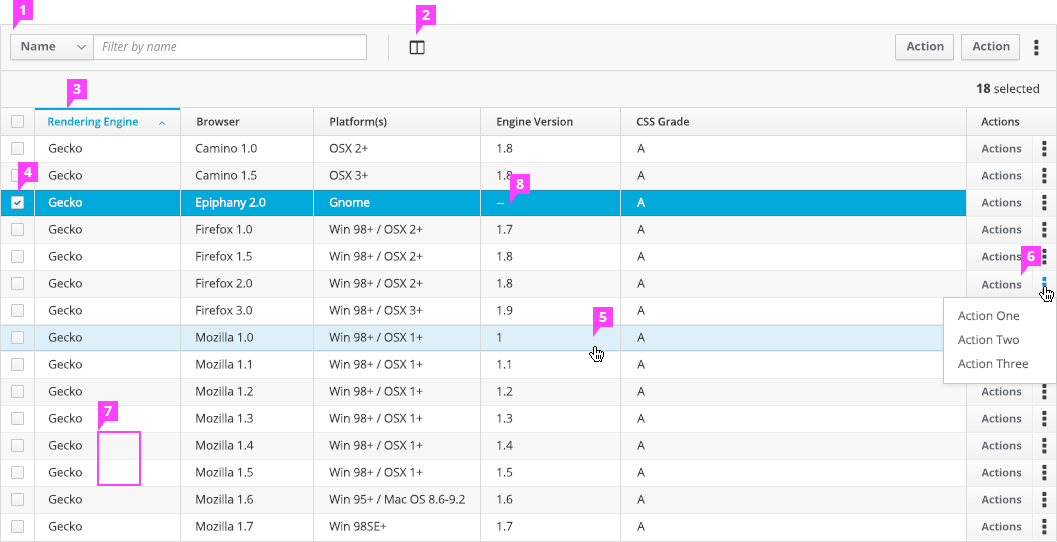

Table with a single row selected

  1. Toolbar: This version of the Table View is using a Toolbar with filter and actions. Item count is also included in the toolbar on the right hand side.

  2. Column Visibility: Control what data displays by hiding and showing columns. See column visibility for more details about interaction with the control, and the toolbar for more examples of icon placement in the toolbar.

  3. Sorting: Organize data by sorting columns. All columns are sortable, simply click on the column header to sort via info found in that column.

    Active column will be highlighted with a blue line above the column and blue text. The carat indicates the direction of the sort, in this case from ascending order alphabetically.

  4. Select Row(s): Click on the checkbox to select multiple rows in order to perform bulk actions on those rows simultaneously.

    Selecting a checkbox activates and highlights the row. This highlight is more prominent than the highlight for hovering over a row.

  5. Hover State: When the user hovers over a row, that row will be lightly highlighted and outlined. This helps the user to isolate the row, especially when clicking on items in the row.

  6. Inline Actions: Inline actions can be performed within a single row to manipulate the data. The most common 1-2 (max) actions are shown as a button with additional actions, if any, available via a dropdown menu. These actions should use words rather than icons for clarity. Please reference Kebab Menu for details.

  7. Row Shading: Use alternating row colors to help the user read the content of the table more easily.

  8. Unavailable (optional): Users can use “–” when the value of a cell should be rendered as unavailable.

Table States – continued

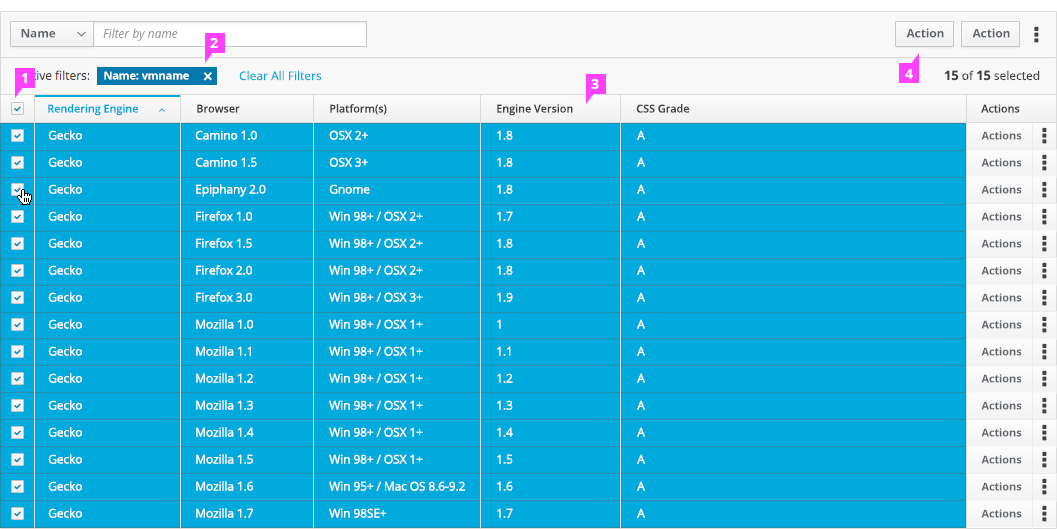

Table with a all rows selected

  1. Select All Rows: Selecting the checkbox in the header row selects all rows on the page. The total number of rows selected is shown near the table action buttons.

  2. Filtering (optional): User can see results of simple filters here. Results include the item and results count, list of active filters (with ability to remove individual filters), and button to clear all filters.

  3. Column Reordering: User can change the order of columns listed in the table. Click on a column header and drag it along the row of headers into the desired position. Note that only one column can be moved at a time.

  4. Bulk Item Actions: Bulk item action buttons are activated when multiple rows are selected. Some actions are available as both a table action and a bulk item action. The number of rows selected is shown near the table action buttons.

Column Visibility

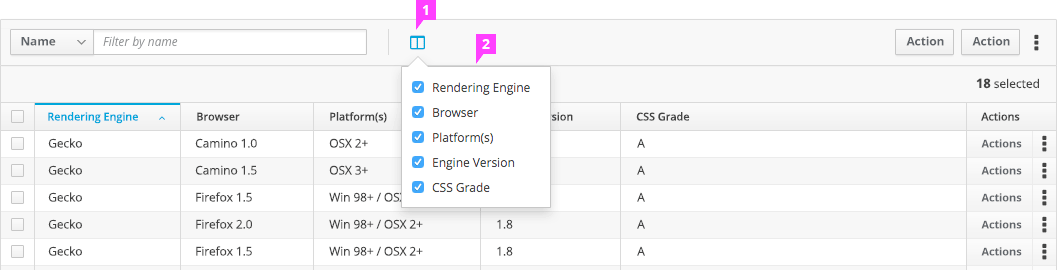

Table with a column visibility menu active

  1. Column Visibility Icon: Displays in the toolbar in the Sort control group after the Filter control group. Sort controls may or may not be include in the toolbar. If sort controls are included, then column visibility is the last item in the Sort control group.

  2. Column Visibility Dropdown: Lists all columns that can be displayed in the table.

  • Each list item is a checkbox with the column header as the label.

  • The list is sorted by the same order that the columns appear in the table.

  • When a checkbox selection is cleared, the column is removed from the table, and the other columns expand to fill the width of the table. Alternatively, when a checkbox is selected, the column is added to the table.

What’s not covered in the current design but will be covered in future sprints:

  • Simple Sort

  • Ability to expand and collapse rows to give user the option to view more details on each item

  • Multi Column Sort

  • Stick Column Headers

  • Mobile Design

Additional Notes about Behavior

  • Pagination: Table view supports pagination. See Pagination for more details.

  • Empty State: If no items exist in the table, display the Empty State pattern. If there are no items to display as the result of a null filter result, see the Filter pattern for more information about how to display this.

Data Tables

See http://datatables.net for complete data tables documentation.

Note: jquery.dataTables.js must occur in the HTML source before patternfly*.js.

1 of 3
0 of 0 selected
Rendering Engine Browser Platform(s) Engine Version CSS Grade Actions
per page
1-15 of 75
of 5

Reference Markup

<!-- Toolbar -->
<div class="row toolbar-pf table-view-pf-toolbar" id="toolbar1">
  <div class="col-sm-12">
    <form class="toolbar-pf-actions">
      <div class="form-group toolbar-pf-filter">
        <label class="sr-only" for="filter">Rendering Engine</label>
        <div class="input-group">
          <div class="input-group-btn">
            <button type="button" class="btn btn-default dropdown-toggle" id="filter" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">Rendering Engine <span class="caret"></span></button>
            <ul class="dropdown-menu">
              <li><a href="#" id="filter1">Rendering Engine</a></li>
              <li><a href="#" id="filter2">Browser</a></li>
              <li><a href="#" id="filter3">Platform(s)</a></li>
              <li><a href="#" id="filter4">Engine Version</a></li>
              <li><a href="#" id="filter5">CSS Grade</a></li>
            </ul>
          </div>
          <input type="text" class="form-control" placeholder="Filter By Rendering Engine..." autocomplete="off" id="filterInput">
        </div>
      </div>
      <div class="form-group">
        <button class="btn btn-default" type="button" id="deleteRows1">Delete Rows</button>
        <button class="btn btn-default" type="button" id="restoreRows1" disabled>Restore Rows</button>
        <div class="dropdown btn-group  dropdown-kebab-pf">
  <button class="btn btn-link dropdown-toggle" type="button" id="dropdownKebab" data-toggle="dropdown" aria-haspopup="true" aria-expanded="true">
    <span class="fa fa-ellipsis-v"></span>
  </button>
  <ul class="dropdown-menu " aria-labelledby="dropdownKebab">
    <li><a href="#">Action</a></li>
    <li><a href="#">Another Action</a></li>
    <li><a href="#">Something Else Here</a></li>
    <li role="separator" class="divider"></li>
    <li><a href="#">Separated Link</a></li>
  </ul>
</div>

      </div>
      <div class="toolbar-pf-action-right">
        <div class="form-group toolbar-pf-find">
          <button class="btn btn-link btn-find" type="button">
            <span class="fa fa-search"></span>
          </button>
          <div class="find-pf-dropdown-container">
            <input type="text" class="form-control" id="find" placeholder="Find By Keyword...">
            <div class="find-pf-buttons">
              <span class="find-pf-nums">1 of 3</span>
              <button class="btn btn-link" type="button">
                <span class="fa fa-angle-up"></span>
              </button>
              <button class="btn btn-link" type="button">
                <span class="fa fa-angle-down"></span>
              </button>
              <button class="btn btn-link btn-find-close" type="button">
                <span class="pficon pficon-close"></span>
              </button>
            </div>
          </div>
        </div>
      </div>
    </form>
    <div class="row toolbar-pf-results">
      <div class="col-sm-9">
        <div class="hidden">
          <h5>0 Results</h5>
          <p>Active filters:</p>
          <ul class="list-inline"></ul>
          <p><a href="#">Clear All Filters</a></p>
        </div>
      </div>
      <div class="col-sm-3 table-view-pf-select-results">
        <strong>0</strong> of <strong>0</strong> selected
      </div>
    </div>
  </div>
</div>

<!-- Table HTML -->
<table class="table table-striped table-bordered table-hover" id="table1">
  <thead>
    <tr>
      <th><label class="sr-only" for="selectAll">Select all rows</label><input type="checkbox" id="selectAll" name="selectAll"></th>
      <th>Rendering Engine</th>
      <th>Browser</th>
      <th>Platform(s)</th>
      <th>Engine Version</th>
      <th>CSS Grade</th>
      <th colspan="2">Actions</th>
    </tr>
  </thead>
</table>

<form class="content-view-pf-pagination table-view-pf-pagination clearfix" id="pagination1">
  <div class="form-group">
    <select class="selectpicker pagination-pf-pagesize">
      <option value="6">6</option>
      <option value="10" >10</option>
      <option value="15" selected="selected">15</option>
      <option value="25">25</option>
      <option value="50">50</option>
    </select>
    <span>per page</span>
  </div>
  <div class="form-group">
    <span><span class="pagination-pf-items-current">1-15</span> of <span class="pagination-pf-items-total">75</span></span>
    <ul class="pagination pagination-pf-back">
      <li class="disabled"><a href="#" title="First Page"><span class="i fa fa-angle-double-left"></span></a></li>
      <li class="disabled"><a href="#" title="Previous Page"><span class="i fa fa-angle-left"></span></a></li>
    </ul>
    <label for="pagination1-page" class="sr-only">Current Page</label>
    <input class="pagination-pf-page" type="text" value="1" id="pagination1-page"/>
    <span>of <span class="pagination-pf-pages">5</span></span>
    <ul class="pagination pagination-pf-forward">
      <li><a href="#" title="Next Page"><span class="i fa fa-angle-right"></span></a></li>
      <li><a href="#" title="Last Page"><span class="i fa fa-angle-double-right"></span></a></li>
    </ul>
  </div>
</form>

<!-- Blank Slate HTML -->
<div class="blank-slate-pf table-view-pf-empty hidden" id="emptyState1">
  <div class="blank-slate-pf-icon">
    <span class="pficon pficon pficon-add-circle-o"></span>
  </div>
  <h1>
    Empty State Title
  </h1>
  <p>
    Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.
  </p>
  <p>
    Learn more about this <a href="#">on the documentation</a>.
  </p>
  <div class="blank-slate-pf-main-action">
    <button class="btn btn-primary btn-lg"> Main Action </button>
  </div>
  <div class="blank-slate-pf-secondary-action">
    <button class="btn btn-default"> Secondary Action </button> <button class="btn btn-default"> Secondary Action </button> <button class="btn btn-default"> Secondary Action </button>
  </div>
</div>
